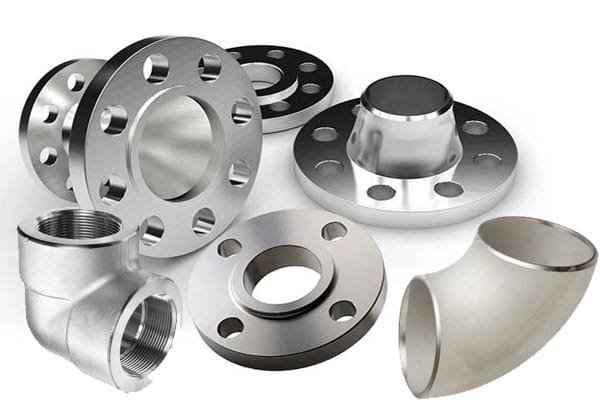

Introduction to Flanges in Oil and Gas

Flanges are essential connectors in the oil and gas industry, used to join pipes, valves, and equipment securely. In high-pressure settings, they must handle extreme stress, temperatures, and often corrosive substances, making material choice critical for safety and reliability.

Top Materials for High-Pressure Applications

The evidence leans toward the following materials for high-pressure flanges, each suited to different needs:
– Alloy Steels (e.g., ASTM A182 F22): These are strong and heat-resistant, ideal for high-pressure and high-temperature environments like refineries.
– Duplex and Super Duplex Stainless Steels (e.g., ASTM A182 UNS S32205):Offer high strength and excellent corrosion resistance, perfect for offshore platforms and sour gas handling.
– Nickel Alloys (e.g., Inconel 625): Used in extreme conditions with high corrosion and temperature resistance, such as offshore oil platforms.
– Carbon Steel (e.g., ASTM A105): Cost-effective and strong for high pressure, but less corrosion-resistant, often used onshore with protective coatings.

An unexpected detail is that nickel alloys, while highly effective, can be significantly more expensive (over $50 per kg), making them a choice for only the most demanding applications.

Supplier Recommendation

For those in India, consider petropipe.co.in for high-quality flanges and oil and gas equipment, known for tailored solutions in the industry.

 Detailed Analysis of Flange Materials for High-Pressure Oil and Gas Applications

This note provides a comprehensive exploration of flange materials for high-pressure oil and gas applications, expanding on the key points and incorporating all relevant details from extensive research. The focus is on clarity for a lay audience, avoiding technical jargon, and ensuring a thorough understanding of material selection, applications, and industry practices.

Background and Importance of Flanges

Flanges are critical components in the oil and gas sector, serving as connectors for pipes, valves, pumps, and other equipment. They ensure a secure, leak-free connection, which is vital in high-pressure environments where failure can lead to leaks, explosions, or environmental damage. High-pressure applications, such as those in refineries, offshore platforms, and subsea pipelines, demand materials that can withstand extreme stress, temperatures, and corrosive substances like hydrogen sulfide (H2S) or seawater. The choice of material is thus paramount for safety, reliability, and longevity.

Research into industry standards, such as ASME B16.5 and ASTM specifications, highlights the need for materials that balance strength, corrosion resistance, and temperature tolerance. The following sections detail the top materials identified, their properties, and their suitability for high-pressure oil and gas applications.

Material Selection Criteria

For high-pressure flanges, the material must meet several criteria:
– Strength: Ability to withstand high mechanical stress without deforming or failing, crucial for pressures often exceeding 600 psi (e.g., Class 600 flanges rated at 890 psi/g at 650°F as per ASME B16.5).
– Corrosion Resistance: Resistance to corrosive substances common in oil and gas, such as H2S, chloride, and acidic environments, to prevent leaks and extend equipment life.
– Temperature Resistance: Maintenance of strength and integrity at elevated temperatures, often ranging from -30°C to +650°C in various processes.
– Cost and Availability: Balancing performance with economic considerations, as some materials (e.g., nickel alloys) are significantly more expensive.

These criteria are informed by standards like ASME B16.5, which provides pressure-temperature ratings for flanges made from various material groups, including carbon steel, low-alloy steel, high-alloy steel, and nonferrous metals. For example, ASTM A182, a chrome-based specification, is noted for material group 2.2, with specific ratings for high-pressure applications.

Top Materials for High-Pressure Flanges

The following table summarizes the top materials, their key properties, and typical applications, based on research into ASTM and ASME standards:

Here is the information provided in an HTML table structure:

Material Type	Examples (ASTM Grades)	Key Properties	Typical Applications
Alloy Steels	A182 F5, F9, F11, F22, F91	High strength, heat resistance, moderate corrosion resistance	Refineries, petrochemical plants, hot oil/gas/steam systems
Duplex/Super Duplex Stainless Steels	A182 UNS S31803/S32205, S32750/S32760	High strength, excellent corrosion resistance, crack resistance	Offshore platforms, subsea equipment, sour gas handling
Nickel Alloys	B160 (Nickel 200), B166 (Inconel 600), B564 (Inconel 625, Incoloy 825, Monel K400, Hastelloy C276)	Exceptional corrosion resistance, high-temperature strength	Offshore oil platforms, nuclear power, chemical processing
Carbon Steel	A105, A694 F42 to F80	High strength, cost-effective, less corrosion-resistant	Onshore pipelines, less corrosive high-pressure systems

1. Alloy Steels (e.g, ASTM A182 F22)

Alloy steels are carbon steels enhanced with elements like chromium, molybdenum, and vanadium to improve strength and heat resistance. For instance, ASTM A182 F22 (chrome-moly steel) is designed for high-pressure and high-temperature environments, with tensile strength around 75,000 psi and yield strength of 45,000 psi for certain classes. These properties make them ideal for refineries and petrochemical plants where hot oils, gases, or steam are transported. They are particularly noted in standards like ASME B16.5 for their ability to handle pressures up to Class 2500 (high-pressure ratings).

 2. Duplex and Super Duplex Stainless Steels (e.g., ASTM A182 UNS S32205)

Duplex and super duplex stainless steels combine the benefits of ferritic and austenitic steels, offering high strength (tensile strength around 620 MPa for Duplex 2205, 770 MPa for Super Duplex) and excellent corrosion resistance, especially against chloride-induced pitting. They are used in offshore oil platforms, subsea equipment, and pipelines handling sour gas, where resistance to stress corrosion cracking is critical. Their mechanical properties, such as yield strength of 450 MPa for Duplex and 550 MPa for Super Duplex, make them suitable for high-pressure applications in marine and chemical processing environments.

3. Nickel Alloys (e.g., Inconel 625)

Nickel alloys, such as Inconel 625, are composed primarily of nickel with additions like chromium and molybdenum, offering exceptional corrosion resistance and high-temperature strength (tensile strength around 98 ksi, yield strength 39 ksi). They are used in extreme conditions, such as offshore oil and gas platforms, nuclear power plants, and chemical processing, where they resist acidic and chloride environments. However, their cost (over $50 per kg) makes them a choice for only the most demanding applications, an important consideration for budget-conscious projects.

 4. Carbon Steel (e.g., ASTM A105)

Carbon steel, such as ASTM A105, is the most common and cost-effective material, with high tensile strength (minimum 70,000 psi) and yield strength (minimum 36,000 psi). It is suitable for high-pressure systems but less resistant to corrosion, often requiring coatings or additional protection in oil and gas environments. It is typically used in onshore pipelines and less corrosive high-pressure applications, where cost is a significant factor. Grades like A694 F42 to F80, with higher yield strengths (e.g., F60: yield 60 ksi, tensile 75 ksi), are used for matching API 5L X42 to X80 pipes in high-pressure systems.

Industry Standards and Practices

Research into ASTM and ASME standards, such as ASTM Materials for Forged Flanges, reveals that these materials comply with specifications for pressure-temperature ratings, ensuring interchangeability and safety. For instance, ASME B16.5, 2017, lists 16 nonferrous metal groups, 10 high-alloy steel groups, and 8 low-alloy steel and carbon groups, with pressure classes ranging from 150 to 2500. An example is ASTM A182 (material group 2.2), rated at 890 psig at 650°F for Class 600 flanges, highlighting its suitability for high-pressure oil and gas.

Additionally, Use of ASME B16.5 Standards for Flange Pressure Ratings  provides tables for pressure-temperature ratings, such as Table B2.2 for material group 2.2, which is critical for selecting materials for high-pressure applications. These standards ensure that flanges meet the demands of the industry, with specific tolerances and dimensions outlined for manufacturing.
